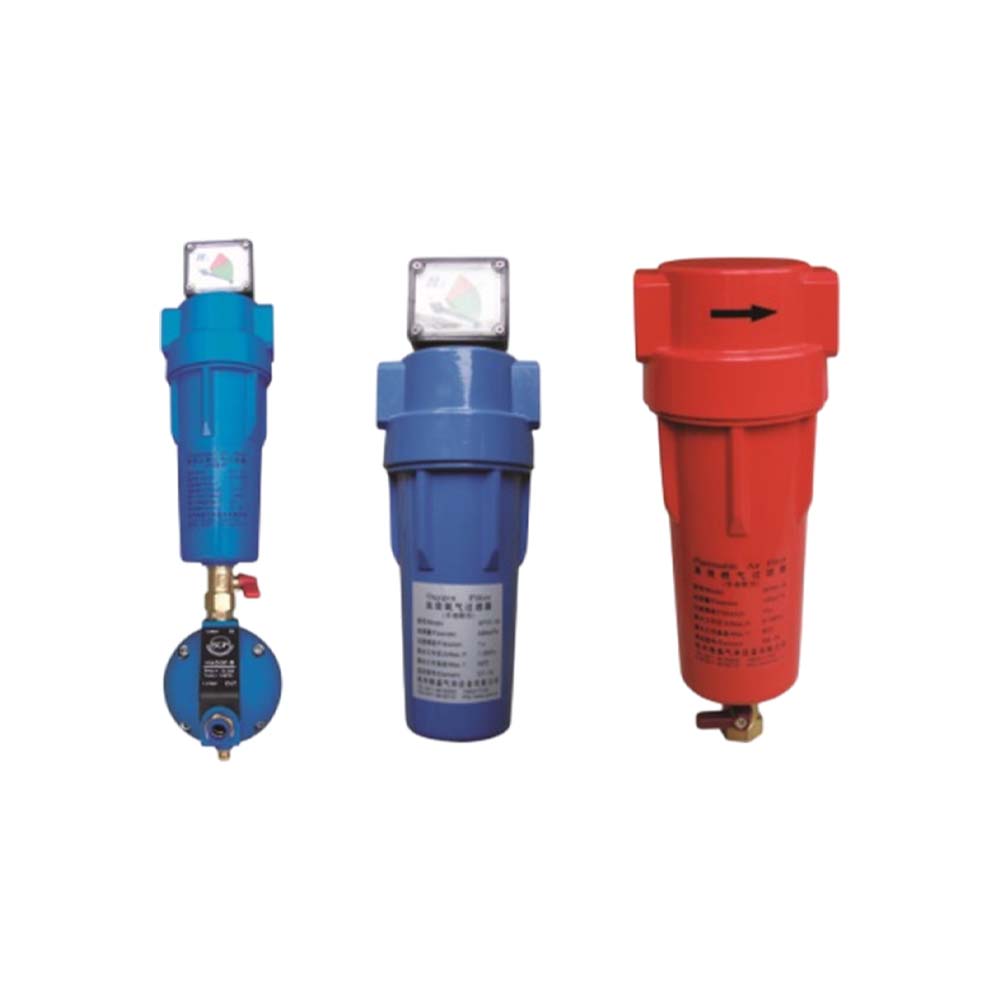

High-Efficiency Compressed Air Precision Filter Technical Parameters

• Model: XF7-16 (Compressed Air) Filtration Accuracy: 1μ, 1 ppm Automatic oil and water drainage
• Model: XFD7-16 (Nitrogen, Argon, Argon-Hydrogen Mixture) Filtration Accuracy: 1μ Manual drainage
• Flow Rate: 60 Nm³/h
• Maximum Inlet Temperature: 66°C
• Design Pressure: 1.5 MPa
• Filter Element Model: E7-16
• Service Life: 6000–8000 hours
• Initial Pressure Drop: <0.007 MPa
• Corrosion protection on inner and outer layers of the filter element
• Multi-layer glass fiber and microfiber filters capture solid and liquid particles ≥1μ
• Epoxy polyester-protected multi-layer glass fiber coalesces oil mist and filters solid particles, leaving oil content at 1 ppm W/W

High-Efficiency Oxygen Filter Technical Parameters

• Model: XFY7-16
• Flow Rate: 60 Nm³/h
• Filtration Accuracy: 1μ
• Manual drainage
• Maximum Inlet Temperature: 66°C
• Design Pressure: 1.5 MPa
• Filter Element Model: E7-16
• Service Life: 6000 hours
• Initial Pressure Drop: <0.007 MPa
• Corrosion protection on inner and outer layers of the filter element
• Multi-layer glass fiber and microfiber filter solid and liquid particles above 1μ
• Epoxy polyester-protected multi-layer glass fiber coalesces oil mist and filters solid particles

High-Efficiency Fuel Gas Filter Technical Parameters

• Model: XFR9-16
• Flow Rate: 10 Nm³/h
• Filtration Accuracy: 10μ
• Manual drainage
• Maximum Inlet Temperature: 80°C
• Design Pressure: 1.5 MPa
• Operating Pressure: 0.1 MPa
• Filter Element Model: R9-16
• Service Life: 6000 hours
• Initial Pressure Drop: <0.007 MPa
• Stainless steel folded mesh filter element with stainless steel inner support
• Completely filters solid particles of 10μ or larger, collects them at the bottom of the filter for discharge, and can be cleaned with detergent
