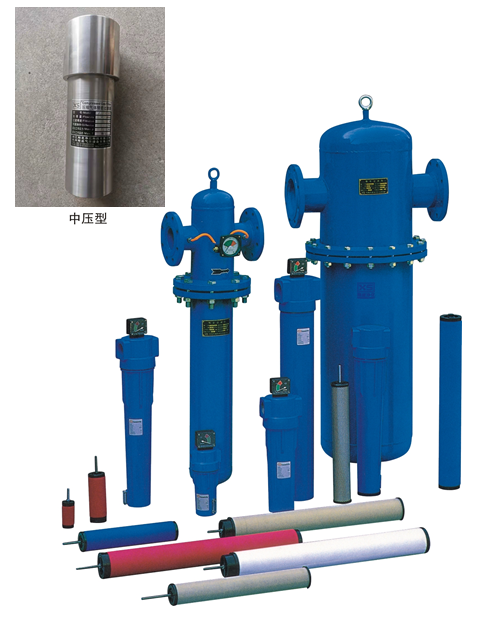

Product Description:

The XF Series Compressed Gas Filters are designed according to international standards and adopt HANKISON-type filter elements from the United States. The housings are made of high-quality aluminum alloy, carbon steel, or stainless steel, manufactured with advanced processing techniques for a refined and durable appearance. Their performance matches that of HANKISON products and complies with the ISO 8573.1-2001 international standard for compressed air quality.

Compared with competing brands, these filters offer superior contaminant removal efficiency while maintaining a lower pressure drop. It should be noted that every 0.14 kgf/cm² increase in pressure drop results in a 1% increase in power consumption. Throughout their service life, the filter elements maintain a low pressure drop without saturation. When serviced annually as required, the air quality guarantee is automatically extended for another year.

Note: The filter element must be replaced periodically or when the differential pressure gauge pointer enters the red zone to avoid excessive pressure drop caused by filter clogging.

Product Features

XF-16 – XF-40

• Enlarged flow path to minimize pressure drop.
• High-quality aluminum alloy housing.
• Internal and external surfaces coated with epoxy resin powder for enhanced durability and corrosion resistance.
• Threaded inlet and outlet connections with airflow direction markings for easy installation.
• O-ring sealing to ensure leak-proof performance.
• Ribbed housing design for convenient handling with a special wrench.
• Optional differential pressure gauge indicates the optimal time for filter replacement—maximizing filter investment efficiency and reducing pressure drop.
• Working pressure: 0.1–1.6 MPa; Working temperature: ≤66°C; Models up to 42 MPa available on request.

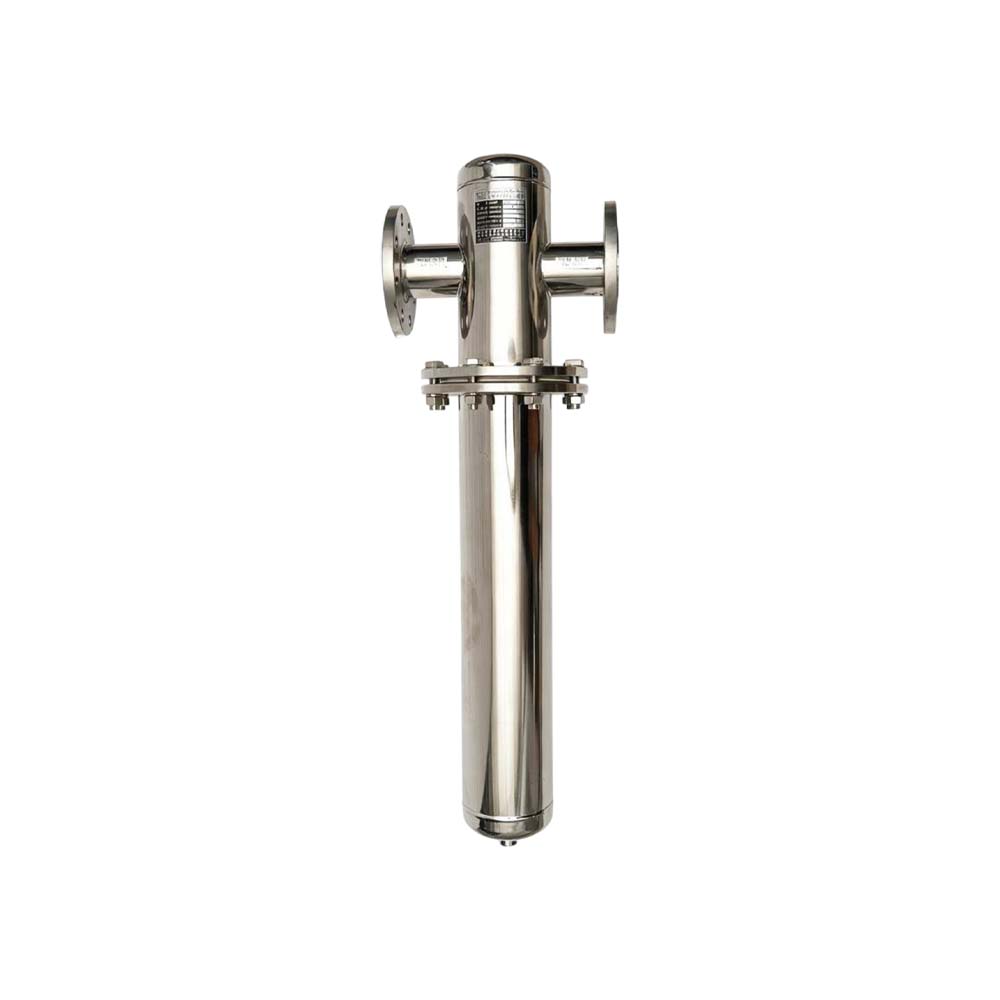

XF-44 and Above*

• Housings made of high-quality carbon steel, with flange connections.
• Internal and external surfaces treated for anti-rust protection, smooth finish, high durability, and corrosion resistance.
• Equipped with a float-type or electronic automatic drain, ensuring reliable operation and long service life.
• Working pressure: 0.1–1.0 MPa; Working temperature: ≤66°C; Models up to 10 MPa available on request.

Benefits of Timely Filter Replacement

• Ensures high-quality compressed air
• Protects adsorption dryer beds
• Safeguards downstream equipment, personnel, and processes
• Reduces operating costs
• Improves productivity and profitability

Working Pressure Correction Coefficient

Air Quality / Pressure Drop Chart
