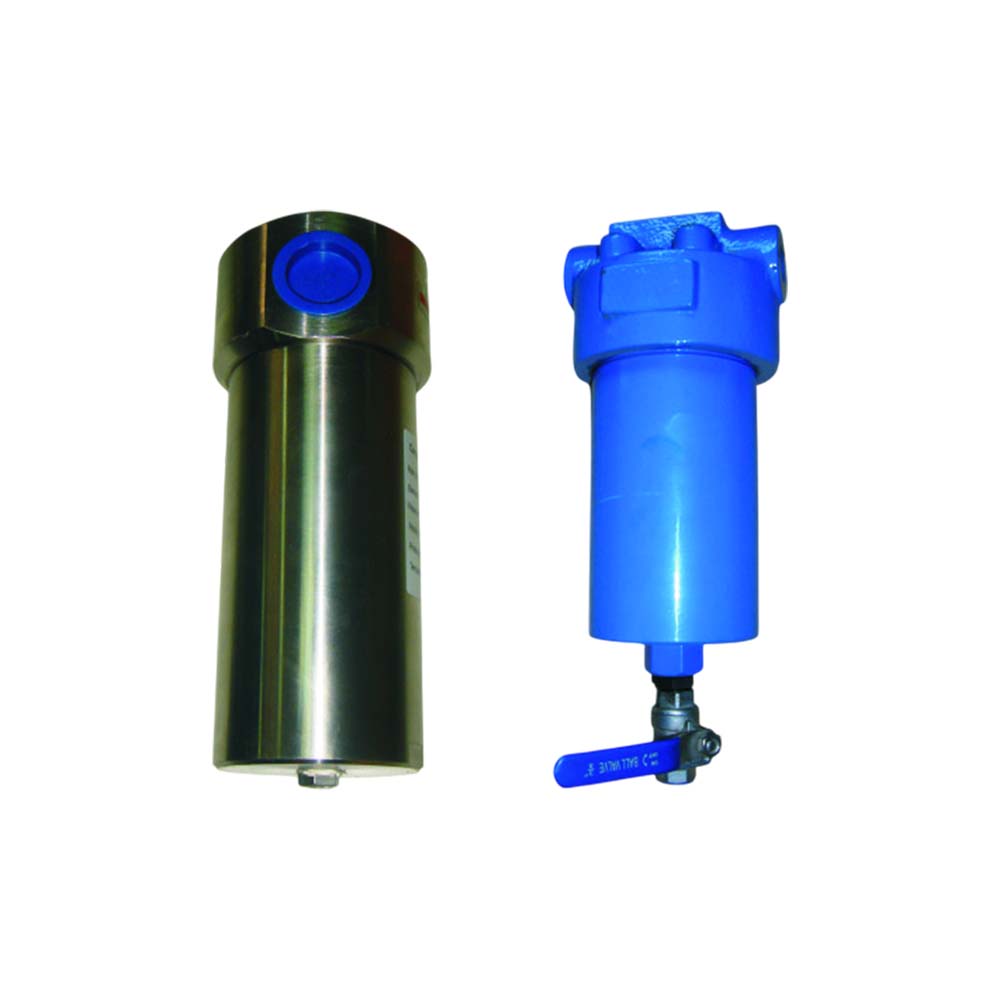

High-pressure precision filters refer to filters with operating pressures ranging from 1.0 MPa to 35 MPa and various flow rates. The housing materials include cast steel, chrome-plated carbon steel, carbon steel, and stainless steel. They are widely used in industries such as bottle blowing and injection molding.
| Model | Connection | Capacity(m3/min) | Width | Height | Pressure(MPa) | Filter Element Model |
| A | B | |||||
| XF*-16G | DN15 | 1 | 90 | 182 | 4.0 | E*-16G |
| XF*-20/24G | DN25 | 3 | 112 | 236 | 4.0 | E*-20/24G |
| XF*-W | DN15-25 | 3-6 | 128 | 260 | 8.0 | E*-W |
| XF*-X | DN40 | 6-10 | 146 | 504 | 8.0 | E*-X |
| XF*-Y | DN50 | 10-20 | 206 | 530 | 8.0 | E*-Y |
Note：
①The manual drain valve is a standard configuration; the high-pressure electronic drain valve is optional.
②The“*”in the model represents various filtration grades. The above dimensions are for threaded connections; if all connections are flanged, the dimensions will be larger.
③Filters with higher flow rates and higher pressures can be custom-made.
