Design Conditions

Pressure dew point:

       • Oil-free screw air compressor: -40°C

       • Centrifugal air compressor: -20°C

Nominal capacity: 17 m³/min ~ 600 m³/min

Inlet air pressure: 0.5 MPa ~ 1.0 MPa

Inlet air temperature:

       • Oil-free screw air compressor: 170°C

       • Centrifugal air compressor: 110°C

Ambient temperature: 0°C ~ 45°C

Cooling water temperature: 32°C

Design Features

Fully automatic continuous monitoring operation

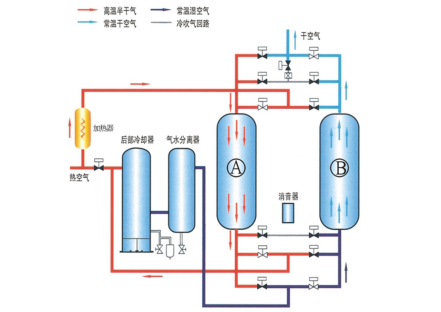

The desorption regeneration/cooling airflow direction is opposite to that of the adsorption process
The heating regeneration process utilizes the system’s own heat without consuming other energy sources
Professional software design with an intercooler equipped with a turbulence generator for efficient air cooling
High-efficiency air–water separation structure using “deceleration condensation and forced cyclone separation,” combined with a large-capacity, high-reliability multi-stage automatic drain system
Upward-flow adsorption process with a unique airflow distribution structure effectively prevents desiccant “water poisoning”
High-reliability dual eccentric switching valve control combination effectively reduces pressure loss

Customized / Optional Configurations

Pressure dew point: -40°C / -70°C

Dew point energy-saving control

Local / remote control and communication

Post-filter configuration

Model Specifications and Performance Parameters

   Notes:

1. Optional configurations: (1) Dew point meter (2) Dew point control function (3) Drying/regeneration status display (4) High dew point alarm (5) Misoperation alarm (6) Bypass pipeline for the whole unit (7) Integrated post-filter installation (8) Touch screen display, microcomputer control (9) Computer communication interface (10) Tower insulation layer

2. Customization available for inlet air pressure above 1.0 MPa, flow rate above 600.00 m³/min, full stainless steel construction, intercooler heat exchange material made of stainless steel or naval brass, steam or other waste heat regeneration, non-compressed air media treatment, and other special applications.

3. Technical parameters are subject to change without prior notice; actual product specifications shall prevail.
