Design Conditions

• Pressure Dew Point: -40℃
• Nominal Capacity: 17 m³/min ~ 360 m³/min
• Inlet Air Pressure: 0.5 MPa ~ 1.0 MPa
• Inlet Air Temperature: 5℃ ~ 45℃
• Ambient Temperature: 0℃ ~ 45℃
• Inlet/Outlet Pressure Loss: ≤0.02 MPaBlower Inlet Air Condition: 40℃ (RH = 70%)

Design Features

• Fully automatic continuous monitoring operation

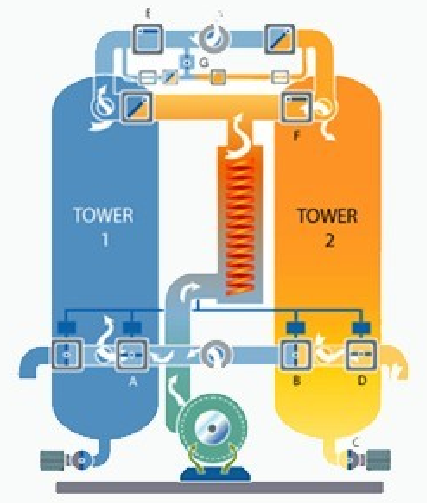

• Ambient air for desorption regeneration / purified air for cooling; flow direction opposite to adsorption process
• Upward adsorption flow with unique air distribution design effectively prevents desiccant “water poisoning”
• High-reliability switching valve control assembly effectively reduces pressure loss

Customization / Optional Configurations

• Pressure dew point: -70℃
• Dew point energy-saving control
• Local / remote control and communication
• Pre- and post-filter configurations
• Flow nozzle

Model Specifications and Performance Parameters

Note:

1. Optional configurations: 1) Dew point meter 2) Dew point control function 3) Malfunction alarm 4) Bypass pipeline for the whole unit 5) Integrated pre-/post-filters installed on the unit 6) PLCs and touch screens from brands such as Siemens or ABB 7) Various communication interfaces including RS485 I/O, Profibus, Modbus, and Ethernet connections.

2. For inlet air pressure exceeding 1.0 MPa, full stainless-steel construction, steam heating or other waste heat regeneration methods, non-compressed air medium treatment, and other special applications are available upon request.

3. Technical specifications are subject to change without prior notice. Actual product parameters shall prevail.
