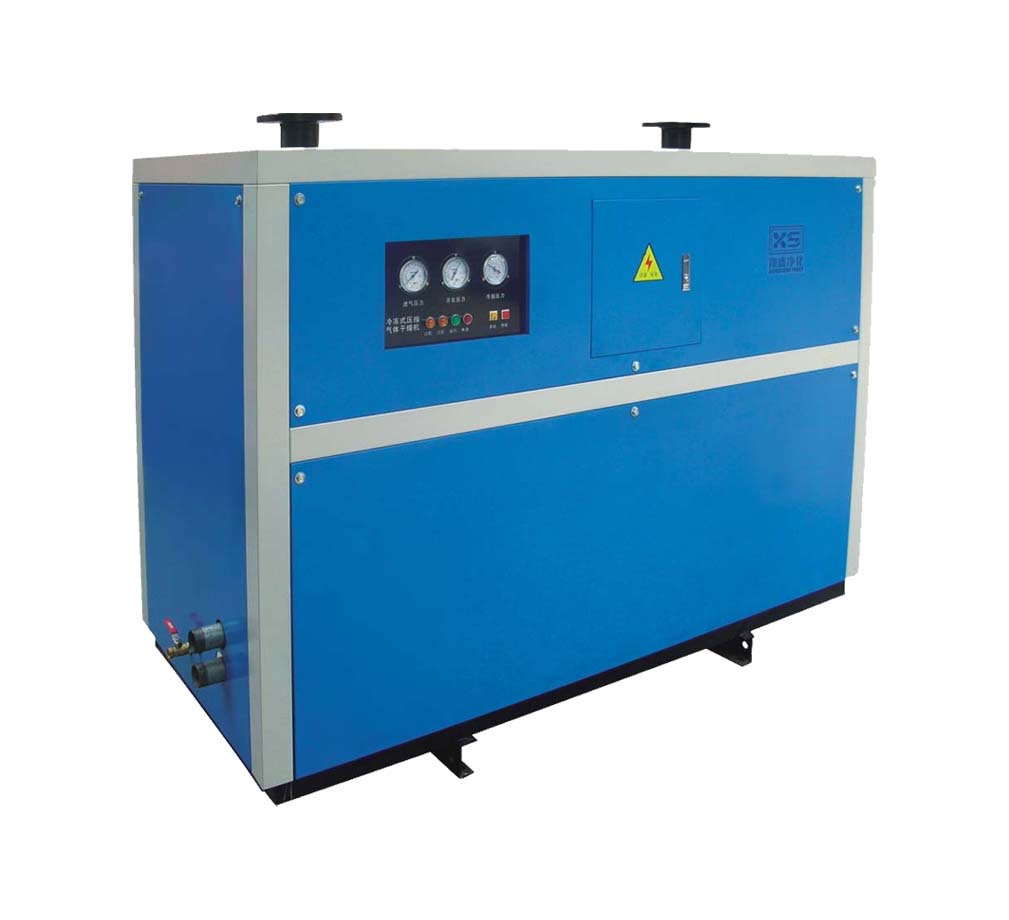

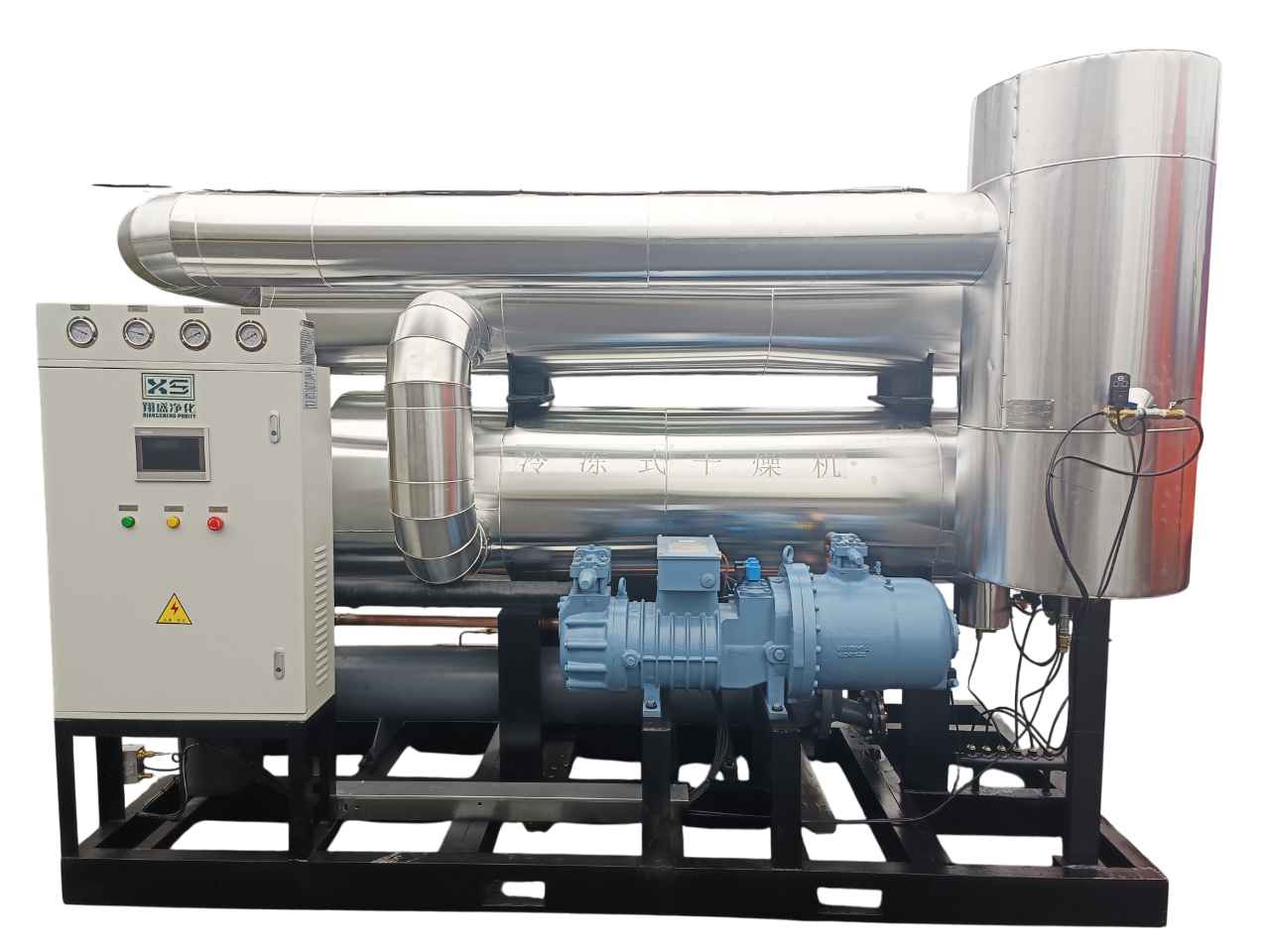

Water-Cooled Refrigerated Air Dryer (Normal Temperature Type)

This series of intelligent refrigerated air dryers adopts an electronic integrated control system or PLC control, offering easy operation and extended service life.
Local, interlock, and remote control of the machine.
Automatic drain control.
Temperature monitoring at various points (air inlet, air outlet, evaporator, condenser, and dew point).
Fault alarm for high/low refrigerant pressure and current overload.

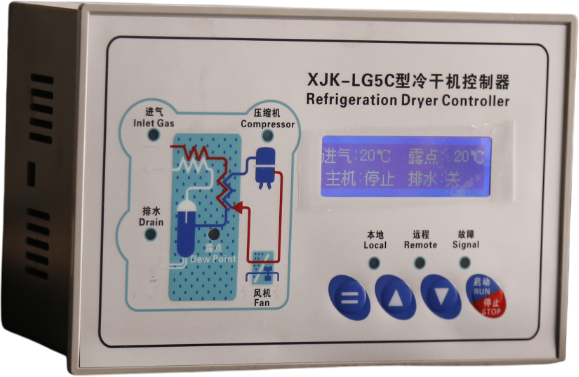

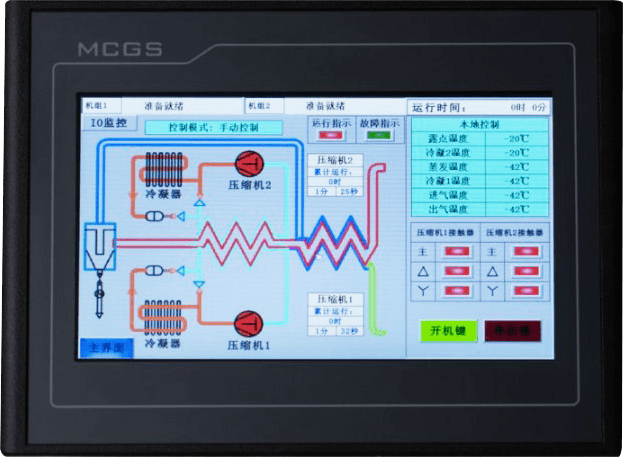

Dot-matrix LCD or touch screen display with parameter setting function.
Upper computer communication function, supporting various communication protocols such as RS485 I/O, Profibus, Modbus, and Ethernet.
Customizable for special requirements such as medium/high-pressure type, explosion-proof type, stainless steel type, CFC-free type, variable frequency control type, and PLC centralized control type.
Low-pressure type, special gas applications (such as biogas, hydrogen, nitrogen, carbon dioxide, etc.), and large-capacity models above 500 m³/min are available upon request.

Model / Item	XS－10W	XS－12W	XS－15W	XS－20W	XS－25W	XS－30W	XS－40W	XS－50W	XS－60W	XS－80W	XS－100W	XS－120W	XS－150W	XS－200W	XS－250W	XS－300W	XS－350W	XS－400W	XS－500W
Nominal Volume Flow Rate(m3/min)	11	13	17	22	27	32	45	55	65	85	110	130	160	210	260	310	360	410	510
Voltage(V)	220		380
Refrigeration Capacity(KW)	1.88	2.34	2.56	3.70	4.50	5.80	7.50	9.00	10.53	12.40	15.40	19.36	23.30	30.70	38.50	51.40	56.00	63.00	79.60
Cooling Water Flow Rate(m3/h)	1.8	2	3	3.5	4.3	5.1	7.2	8.7	10.3	13	15	18	20	28	35	42	45	60	78
Air Connection Size	RC2"	RC2"	DN65	DN80	DN80	DN80	DN100	DN100	DN125	DN125	DN150	DN150	DN200	DN200	DN200	DN250	DN300	DN300	DN350
Cooling Water Connection Size	Rc1"	Rc1"	Rc1"	RC1½″	RC1½″	RC1½″	RC1½″	RC1½″	RC1½″	Rc2"	Rc2"	RC2½″	RC2½″	DN80	DN80	DN100	DN125	DN125	DN125
Net Weight(Kg)	250	270	350	500	550	750	850	1000	1300	1500	1800	2200	2500	3000	3600	4000	4600	5000	5500
Length(mm)	1300	1450	1450	1550	1800	1900	2260	2150	2400	2340	2510	2550	2950	2950	3200	3270	3580	4000	4500
width(mm)	600	600	650	800	800	800	900	900	1120	1150	1160	1200	1500	1500	1500	1500	1600	1800	2000
height(mm)	1060	1060	1150	1360	1360	1360	1540	1610	1530	1730	1770	1800	2030	2130	2350	2420	2450	2500	2600
