Product Features

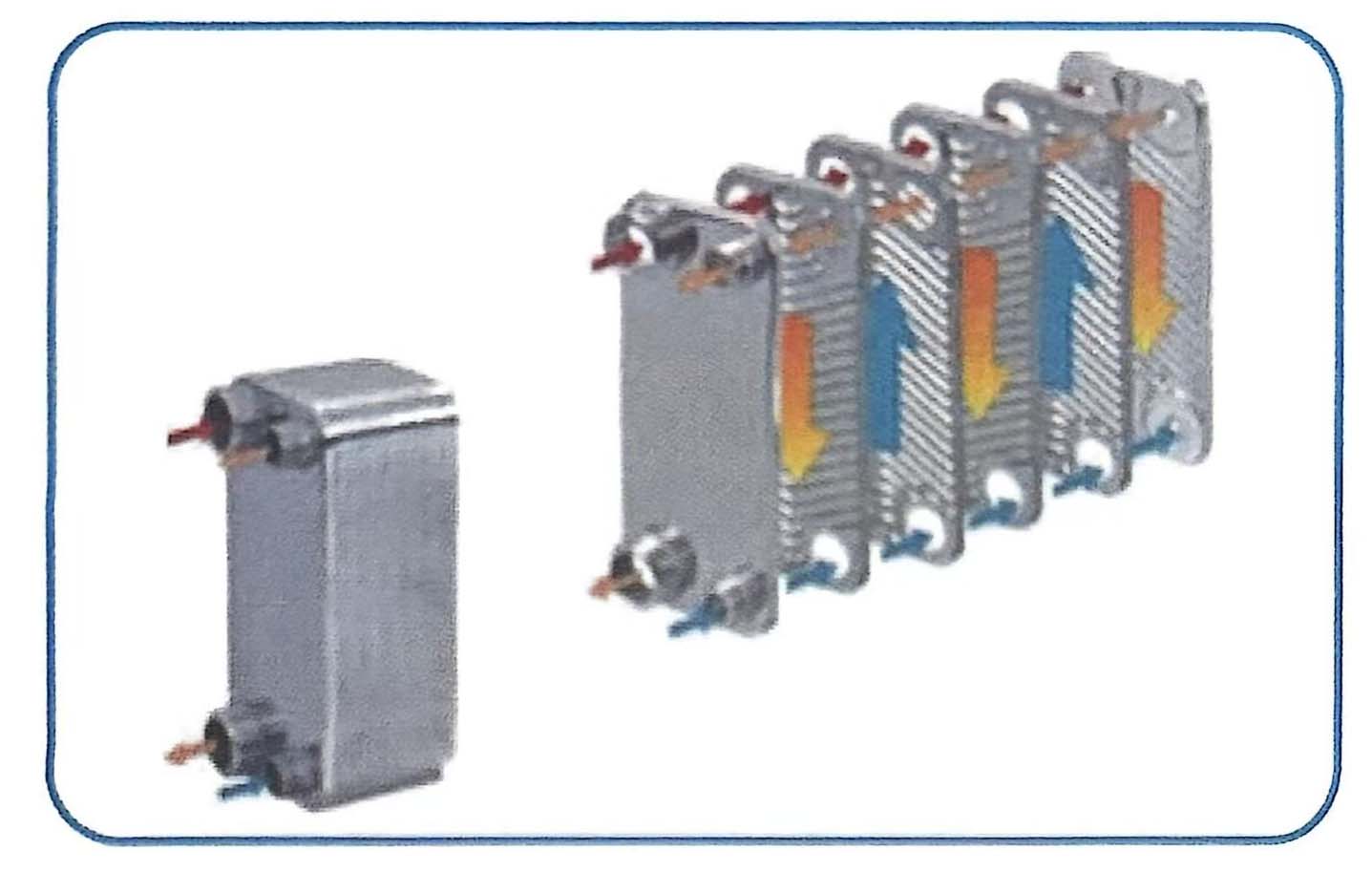

• The high heat exchange efficiency design with an inlet/outlet temperature difference of 5–8℃ minimizes refrigeration demand and achieves the highest energy efficiency ratio. It ensures extremely low relative humidity at the outlet while effectively reducing the evaporator load, thereby lowering overall energy consumption. Compared with shell-and-tube heat exchangers, it saves more than 30% energy and achieves a dew point 3℃ lower. The integrated stainless steel heat exchanger prevents the dryer itself from becoming a source of contamination, ensuring high-quality compressed air.
• The efficient air-water separation structure with "deceleration condensation and filtration separation" covers 100% of the flow range, combined with a highly reliable automatic drainage device to ensure timely and efficient discharge of condensate water, avoiding water accumulation caused by "low separation efficiency" or "drainage failure".
• The entire product series can use environmentally friendly refrigerants, complying with international environmental protection and energy-saving trends.
• The refrigeration compressor and components are from well-known international brands, ensuring stable and reliable performance.
• Optional functions include remote control, dew point display, and fault alarm, with simple and clear operation.

Operating Conditions and Technical Specifications

• Pressure dew point: 2–5℃
• Inlet air temperature: ≤50℃
• Ambient temperature: ≤40℃
• Cooling method: Air-cooled
• Inlet pressure: ≤1.6MPa (orders below 4.0MPa acceptable)
• Pressure loss: ≤0.02MPa
• Refrigerant: R22 or optional R134a, R404A, R407C, R410A and other CFC-free refrigerants according to customer requirements

Performance Parameter Table

Note:

①Nominal capacity refers to the air compressor suction condition (20℃/0.1MPa abs) under the following rated operating conditions: inlet air temperature 45℃, ambient temperature 35℃, dew point temperature 3℃, and inlet air pressure 0.8MPa.

②Special specifications for large flow capacity can be customized.

③Technical parameters are subject to change without prior notice; actual product specifications shall prevail.
