Main Functions (Optional)
- This series of intelligent refrigerated air dryers adopts an electronic integrated control system or PLC control, offering easy operation and extended service life.
- Local, interlock, and remote control of the machine.
- Automatic drain control.
- Temperature monitoring at various points (air inlet, air outlet, evaporator, condenser, and dew point).
- Fault alarm for high/low refrigerant pressure and current overload.

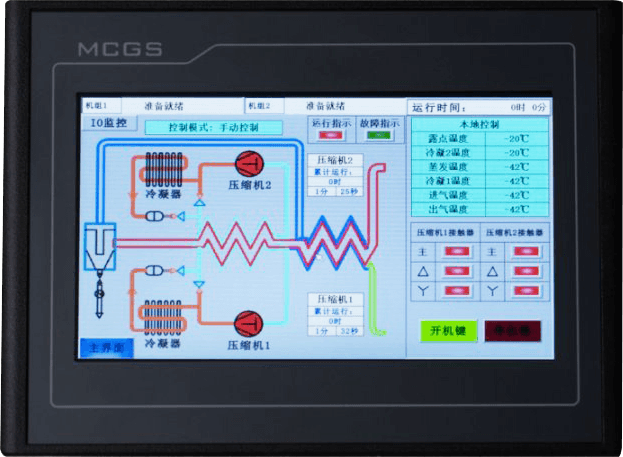

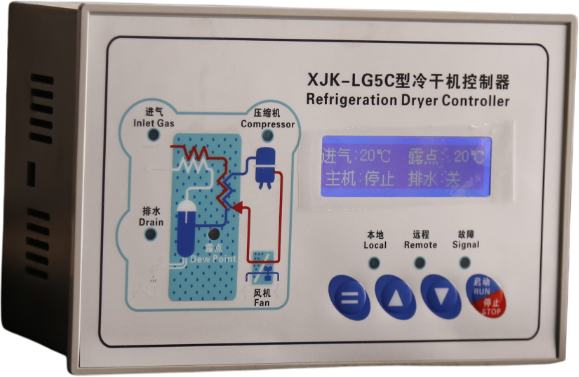

- Dot-matrix LCD or touch screen display with parameter setting function.
- Upper computer communication function, supporting various communication protocols such as RS485 I/O, Profibus, Modbus, and Ethernet.
- Customizable for special requirements such as medium/high-pressure type, explosion-proof type, stainless steel type, CFC-free type, variable frequency control type, and PLC centralized control type.
- Low-pressure type, special gas applications (such as biogas, hydrogen, nitrogen, carbon dioxide, etc.), and large-capacity models above 500 m³/min are available upon request.
| Model / Item | XS－10WH | XS－12WH | XS－15WH | XS－20WH | XS－25WH | XS－30WH | XS－40WH | XS－50WH | XS－60WH | XS－80WH | XS－100WH | XS－120WH | XS－150WH | XS－200WH | XS－250WH | XS－300WH | XS－350WH | XS－400WH | XS－500WH |
| Nominal Volume Flow Rate(m3/min) | 11 | 13 | 17 | 22 | 27 | 32 | 45 | 55 | 65 | 85 | 110 | 130 | 160 | 210 | 260 | 310 | 360 | 410 | 510 |
| Voltage(V) | 220 | 380 |
| Refrigeration Capacity(KW) | 1.88 | 2.34 | 2.56 | 3.70 | 4.50 | 5.80 | 7.50 | 9.00 | 10.53 | 12.40 | 15.40 | 19.36 | 23.30 | 30.70 | 38.50 | 51.40 | 56.00 | 63.00 | 79.60 |
| Cooling Water Flow Rate(m3/h) | 3.6 | 4.8 | 6 | 7 | 8.6 | 10.2 | 14.4 | 17.4 | 20.6 | 26 | 30 | 36 | 40 | 56 | 70 | 84 | 90 | 120 | 150 |
| Air Connection Size | RC2" | RC2" | DN65 | DN80 | DN80 | DN80 | DN100 | DN100 | DN125 | DN125 | DN150 | DN150 | DN200 | DN200 | DN200 | DN250 | DN300 | DN300 | DN350 |
| Cooling Water Connection Size | Rc1" | Rc1" | Rc1" | RC1½″ | RC1½″ | RC1½″ | RC1½″ | RC1½″ | RC1½″ | Rc2" | Rc2" | RC2½″ | RC2½″ | DN80 | DN80 | DN100 | DN125 | DN125 | DN125 |
| Net Weight(Kg) | 330 | 350 | 440 | 650 | 690 | 900 | 1000 | 1170 | 1450 | 1800 | 2250 | 2550 | 2900 | 3680 | 4100 | 4500 | 5100 | 5400 | 6200 |
| Length(mm) | 1300 | 1450 | 1450 | 1550 | 1800 | 1900 | 2260 | 2280 | 2400 | 2740 | 2850 | 2900 | 3200 | 3300 | 3200 | 3300 | 3600 | 4000 | 4500 |
| Width(mm) | 650 | 650 | 700 | 800 | 800 | 800 | 1050 | 1070 | 1120 | 1090 | 1200 | 1220 | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 | 2100 |
| Height(mm) | 1060 | 1060 | 1150 | 1400 | 1410 | 1410 | 1640 | 1690 | 1700 | 1770 | 1840 | 1860 | 2280 | 2300 | 2400 | 2600 | 2650 | 2700 | 2800 |
