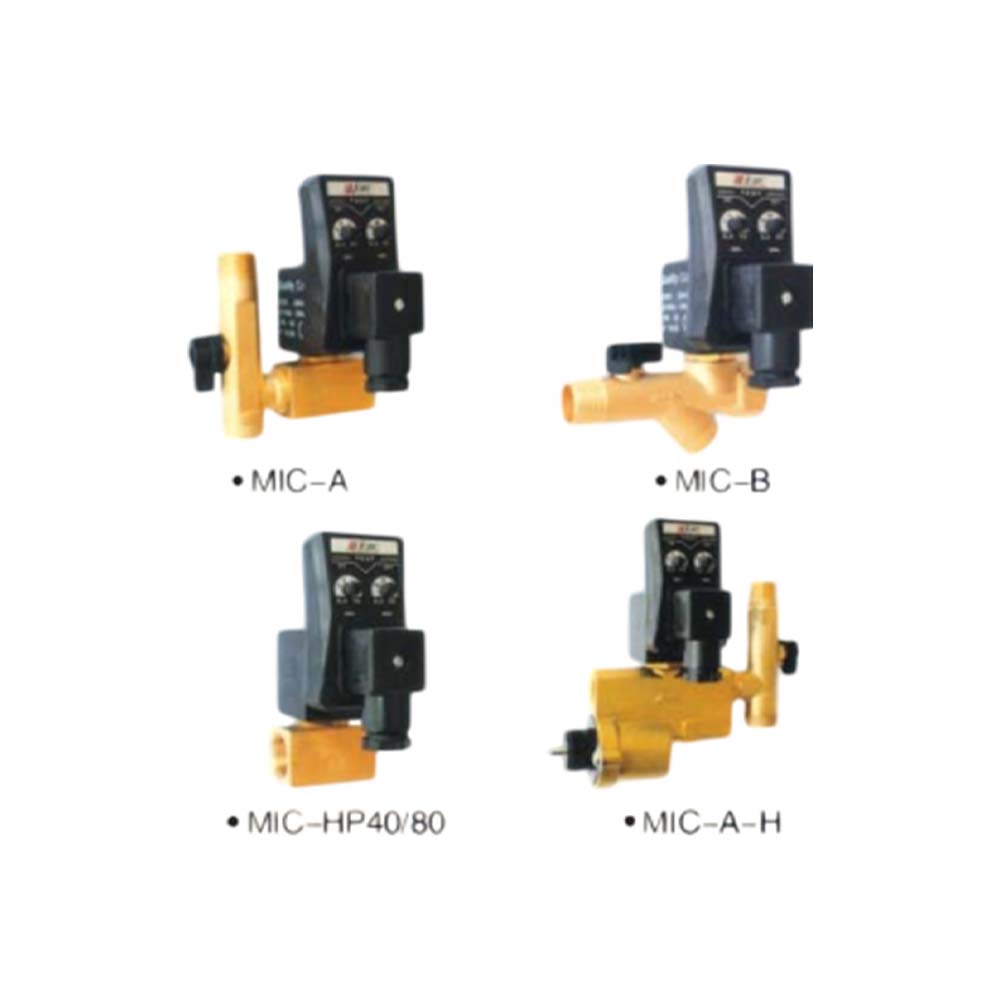

JORC Netherlands – High Quality, Low Cost, Patented Product, CE Certified

• One model suitable for all applications, simple installation, fully automatic, maintenance-free.
• Adjustable OFF interval: 0.5–45 min; ON discharge time: 0.5–10 s, with manual test button.
• Available for multiple pressures: 1.6 MPa, 4.0 MPa, 8.0 MPa, 25 MPa, 35 MPa, 40 MPa; multiple voltages: 24–240 V, 380 V, 50/60 Hz; multiple connection types available.
• Ball valve filter installed before the solenoid valve to ensure the solenoid valve core remains unclogged.
• Protection class: IP65. Insulation class: H. Options for full stainless steel valves and explosion-proof valves.
• Large bore direct-acting valve with fluorine rubber seal, nominal size: ½", maximum medium temperature: 90°C.
• Innovative digital timer for precise and reliable timing (optional).
• MIC-A-H model with electric heating: automatically heats the valve body at low temperatures to prevent condensate freezing, suitable for northern regions and low-temperature compressed air condensate applications, filling a gap in the market.
• XS-16A and XS-16B series electronic drains are also widely supplied; appearance and quality are essentially the same to meet different user needs.
